H81

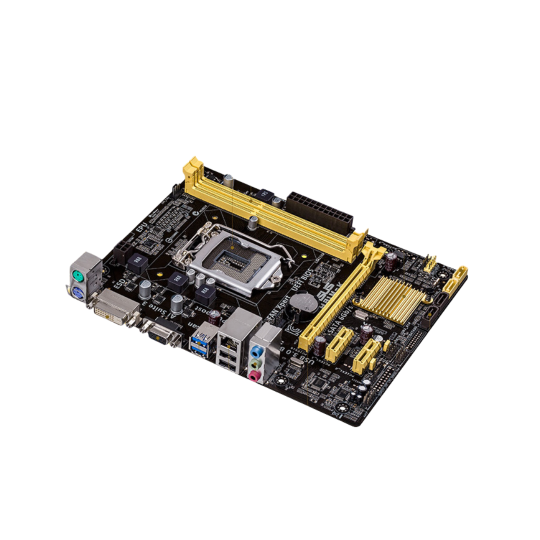

H81M-K Hãng sản xuất Asus Chủng loại ASUS H81M-K (C/SI) CPU hỗ trợ Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 Chipset Intel® H81 Bộ nhớ trong 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) VGA Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Âm thanh Realtek® ALC887 8-Channel High Definition Audio CODEC *2 - Supports : Jack-detection, Front Panel Jack-retasking Mạng Realtek® 8111G, 1 x Gigabit LAN Controller(s) Khe mở rộng 1 x PCIe x16 2 x PCIe 2.0 x1 Chuẩn lưu trữ Intel® H81 chipset : 2 x SATA 6Gb/s port(s), yellow 2 x SATA 3Gb/s port(s), dark brown Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1 Cổng giao tiếp trước và sau 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.0 (blue) 2 x USB 2.0 3 x Audio jack(s) Kích thước uATX Form Factor 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm ) Phụ kiện đi kèm Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main
